Epoxy&Resin Injection System
-

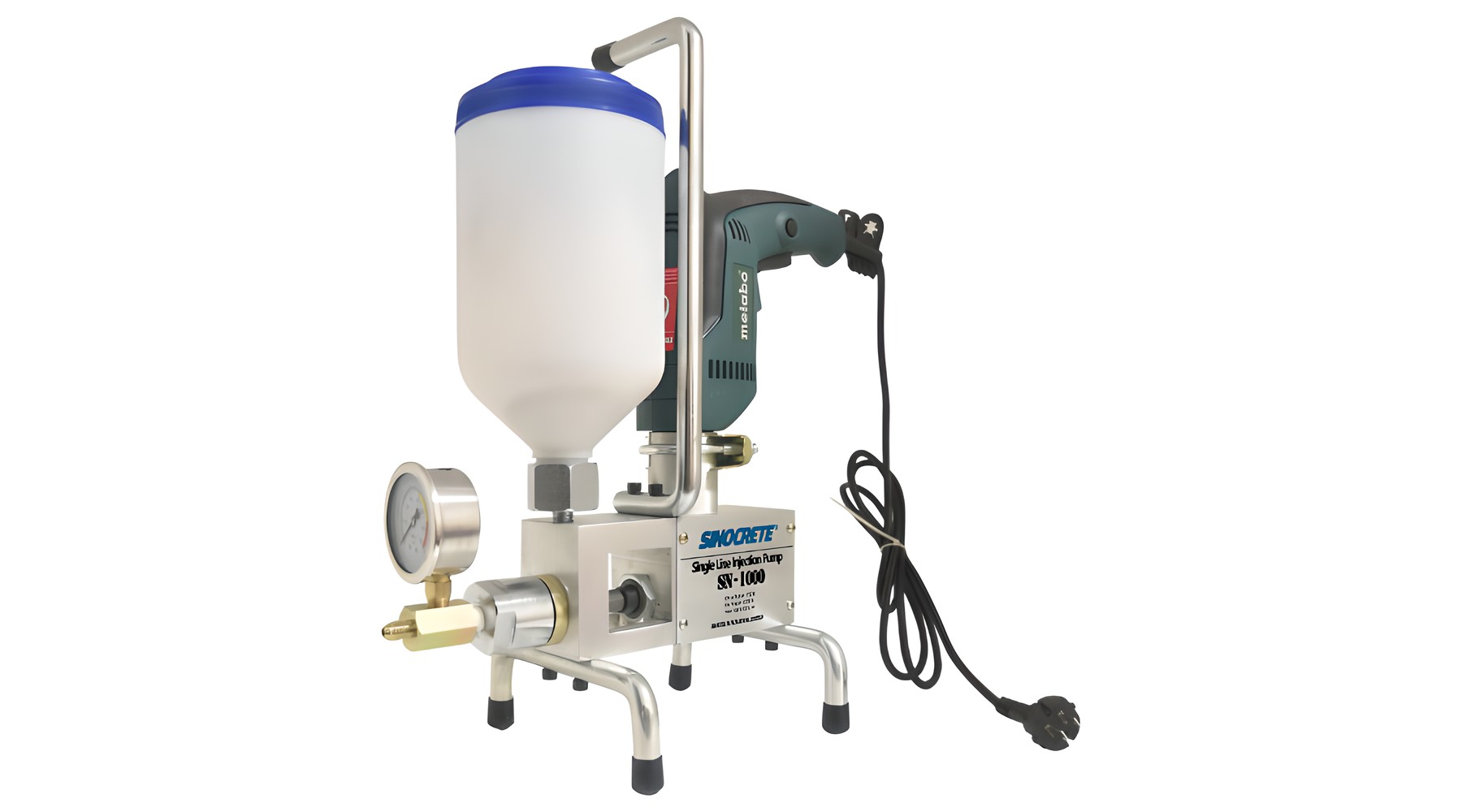

Single Line Injection Pump
Specifications:
Gross: 7.5 Kg
Power: 560w 220v/50Hz OR 110V/50Hz
Max Output Pressure: 11000 PSI
③ Star-up: < 7500 PSI
④ Safety Pressure for Hose: < 14000 PSI
⑤ Safety Pressure for Valve: < 18000 PSI
⑥ Safety Pressure for Coupler: < 16000 PSI
What are Included:
o Machine Body
o 5 meters high pressure hose
o Switch Valve Suit(including coupler)
o Metado/Bosch Eletric Drill
o Maintainance Tools -

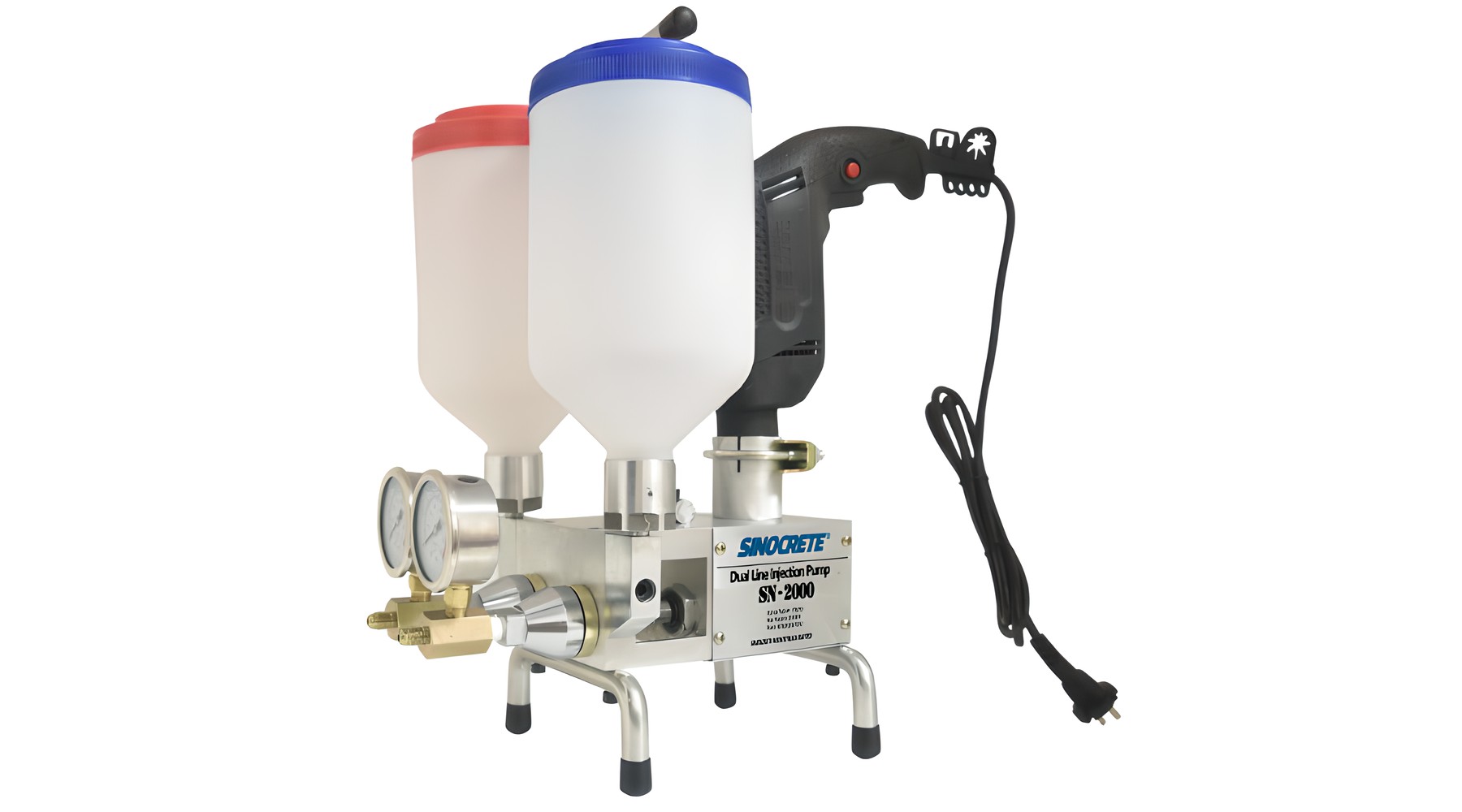

Dual Line Injection Pump
Specifications:
Gross: 13.5 Kg
Mix: 1:1 Ration
Power: 810w 220v/50Hz OR 110V/50Hz
Max Output Pressure: 11000 PSI
③ Star-up: < 7500 PSI
④ Safety Pressure for Hose: < 14000 PSI
⑤ Safety Pressure for Valve: < 18000 PSI
⑥ Safety Pressure for Coupler: < 16000 PSI
What are Included:
o Machine Body
o 5 meters high pressure hose
o Switch Valve Suit(including coupler)
o Metado/Bosch Eletric Drill
o Maintainance Tools
-

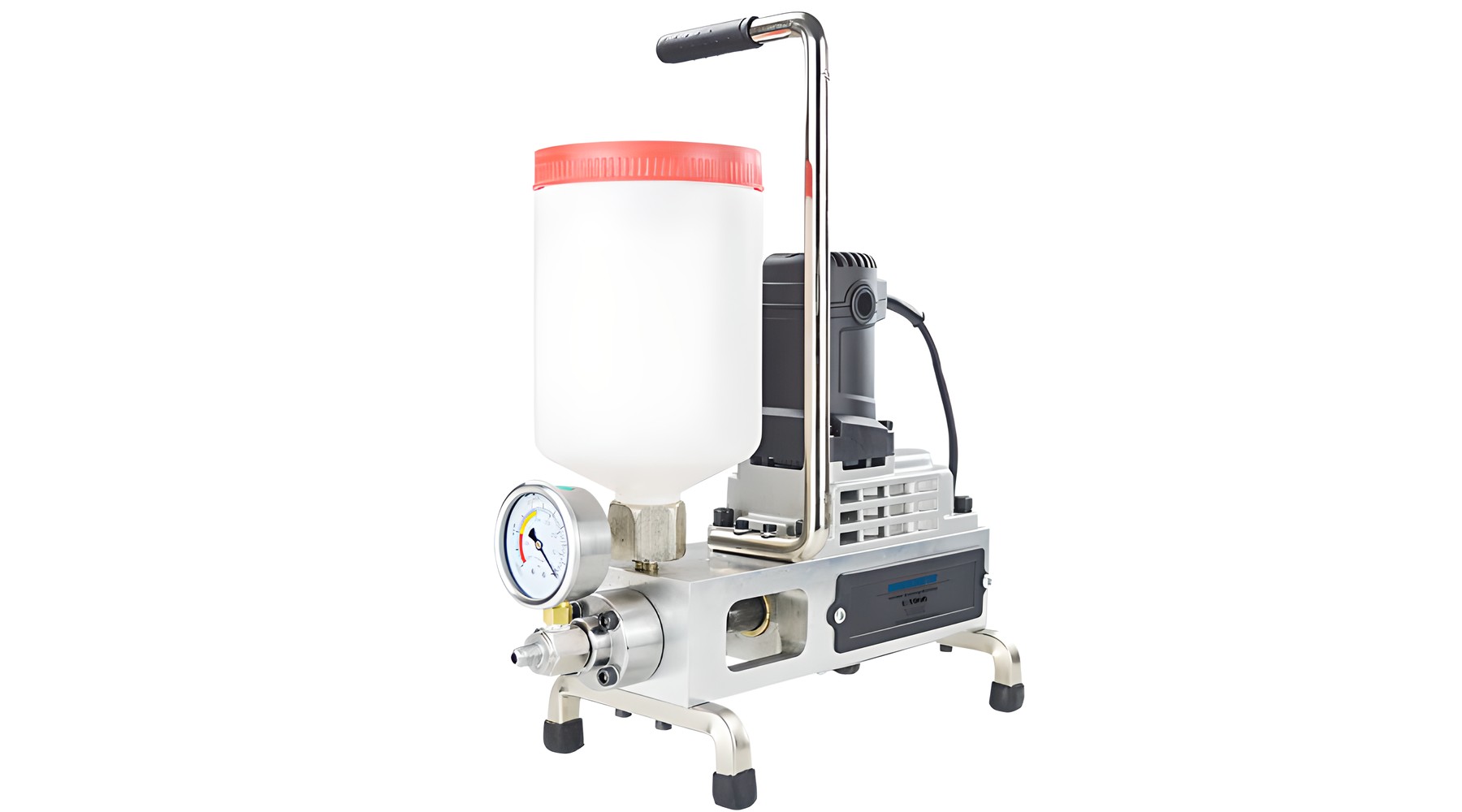

Cement Grouting Machine
Specifications:
Gross: 11 Kg
Power: 750w 220v/50Hz OR 110V/50Hz
Max Output Pressure: 11000 PSI
What are Included:
o Machine Body
o 5 meters high pressure hose
o Switch Valve Suit(including coupler)
o Metado/Bosch Eletric Drill
o Maintainance Tools
-

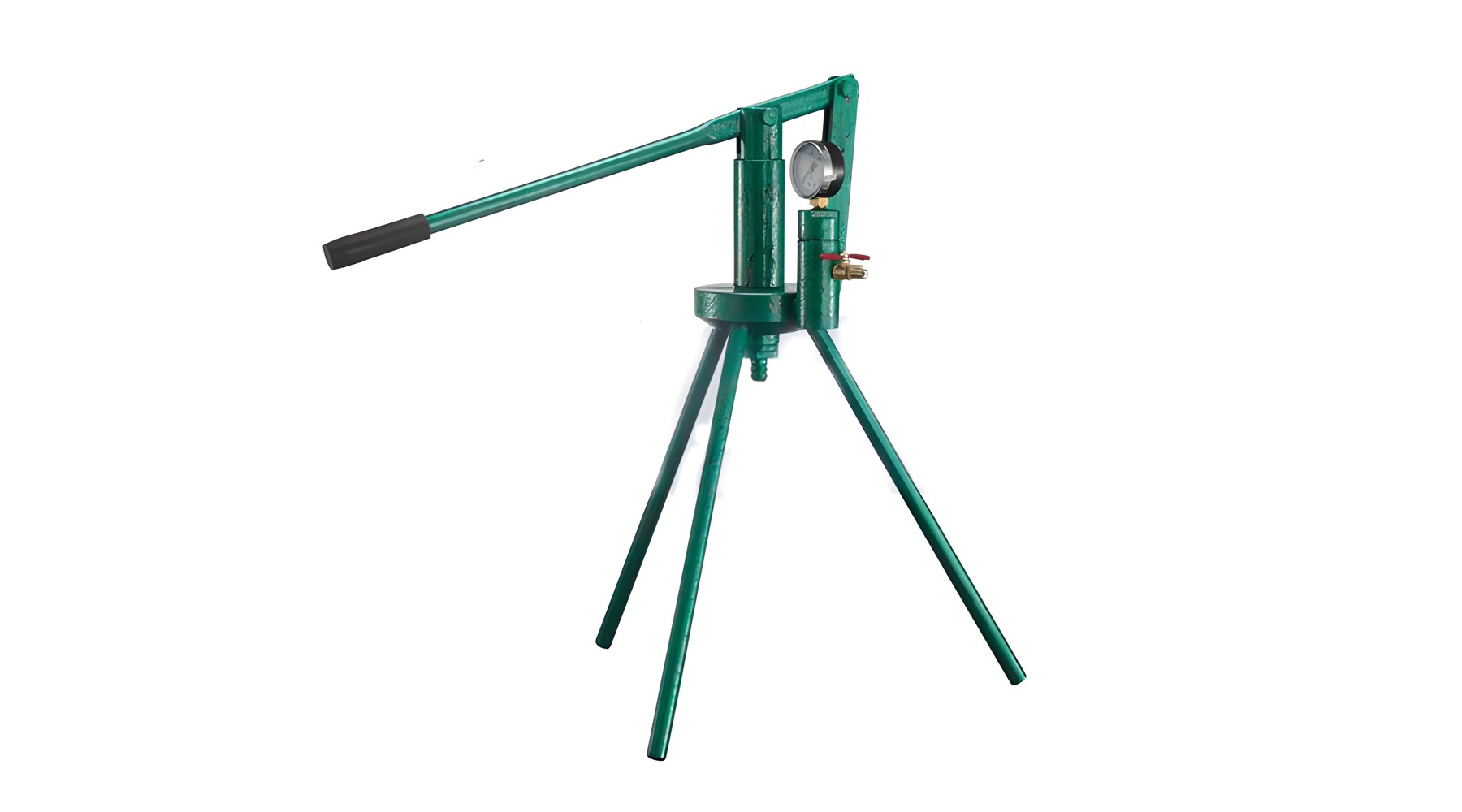

Manual Injection Pump
Specifications:
Hand injection pump
- Every Day Use
- Lightweight
- >1500 PSI
- Easy to use, clean & maintain
For long term use
- Single component
- Pressure gauge
- Mounted on stand, draws material from container or bucket
Injection grouts including epoxy resins and microfine cement -

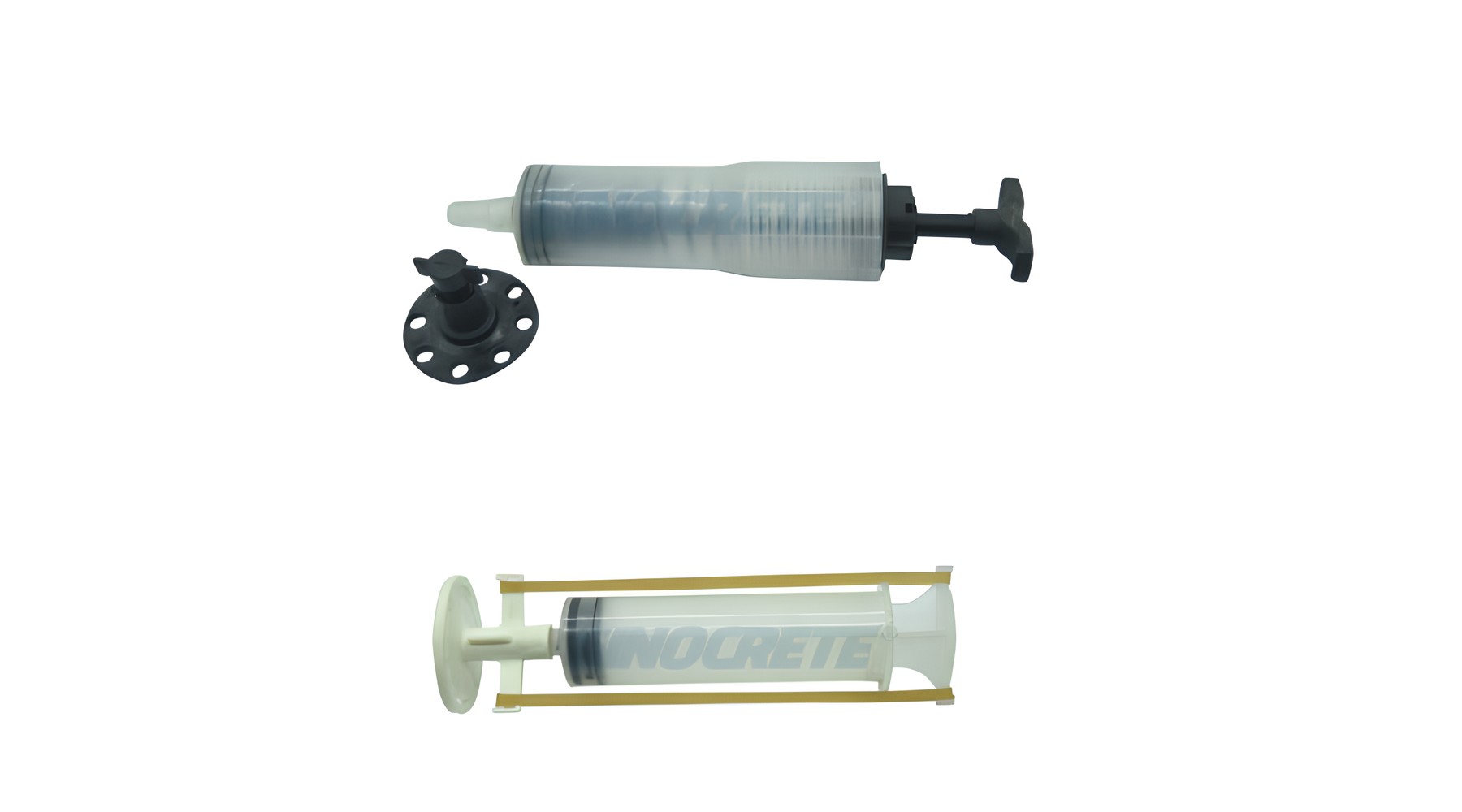

Syringe Injector
DUAL FUNCTIONAL capsule for epoxy injection and air vent The injector can be switched between epoxy injection and air vent mode.
The buffering mechanism in the capsule converts the equipment’s high pressure to low injection pressure, which helps the fine crack cure and complete the work.
The Injector is economical because it can be refilled without replacement.
Features:
1. The buffering mechanism in the capsule converts the equipment's high pressure to low injection pressure, which helps the fine crack cure and complete the work.
2. The buffering mechanism prevents exploding surface ports from sealing due to a sudden increase in equipment pressure.
3. The injector is economical because it can be refilled without replacement.
